High-Pressure Die Casting

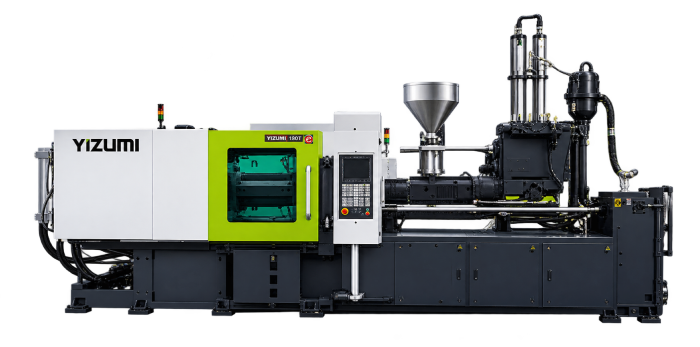

YIZUMI
180T
Cold Chamber HPDC
- Machine Type :
- Cold Chamber HPDC
- Clamping / Locking Force:
- 1,800 kN / 180 Ton
- Automatic Ladler / Material Feeding:
- Yes
- Automatic Part Extractor:
- Yes
- Tie-Bar Space (H × V):
- 460 × 460 mm
- Die Height (Min.–Max.) :
- 200–600 mm
- Locking Stroke
- 380 mm
- Ejector Force
- 105 kN
- Ejector Stroke
- 90 mm
- Injection Force
- 280 kN
- Injection Stroke
- 350 mm
- Plunger Diameter
- 50 / 60 mm
- Aluminium Shot Weight
- 1.2 / 1.8 kg
- Max. Casting Area @ 40 MPa
- 450 cm²
- 24-Hour Shot Capacity
- 1,800–2,400 shots/day (Depends on Die )

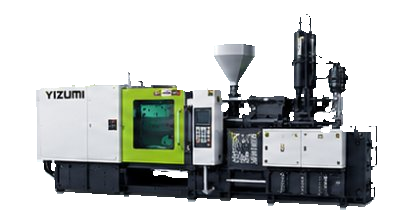

YIZUMI
400T
Cold Chamber HPDC
- Machine Type :
- Cold Chamber HPDC
- Clamping / Locking Force:
- 4,000 kN / 400 Ton
- Automatic Ladler / Material Feeding:
- Yes
- Automatic Part Extractor:
- Yes
- Tie-Bar Space (H × V):
- 650 × 650 mm
- Die Height (Min.–Max.) :
- 300–750 mm
- Locking Stroke
- 550 mm
- Ejector Force
- 180 kN
- Ejector Stroke
- 130 mm
- Injection Force
- 410 kN
- Injection Stroke
- 510 mm
- Plunger Diameter
- 60 / 70 / 80 mm
- Aluminium Shot Weight
- 2.7 / 3.6 / 4.8 kg
- Max. Casting Area @ 40 MPa
- 1,000 cm²
- 24-Hour Shot Capacity
- 1,400–2,000 shots/day (Depends on Die )

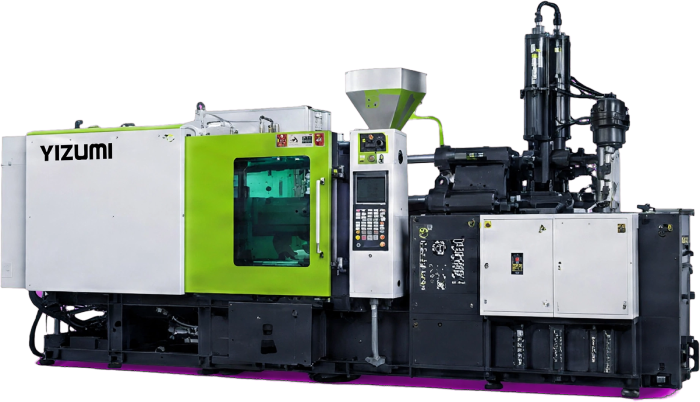

YIZUMI
650T
Cold Chamber HPDC
- Machine Type :
- Cold Chamber HPDC
- Clamping / Locking Force:
- 6,500 kN / 650 Ton
- Automatic Ladler / Material Feeding:
- Yes
- Automatic Part Extractor:
- Yes
- Tie-Bar Space (H × V):
- 780 × 780 mm
- Die Height (Min.–Max.) :
- 350–900 mm
- Locking Stroke
- 670 mm
- Ejector Force
- 300 kN
- Ejector Stroke
- 150 mm
- Injection Force
- 600 kN
- Injection Stroke
- 650 mm
- Plunger Diameter
- 70 / 80 / 90 mm
- Aluminium Shot Weight
- 4.6 / 6.1 / 7.7 kg
- Max. Casting Area @ 40 MPa
- 1,625 cm²
- 24-Hour Shot Capacity
- 800–1,200 shots/day (Depends on Die
